BMG FOR SIDEWINDER CONVERSION GUIDE / REVIEW BY: CHANH PHUONG 12/17/19

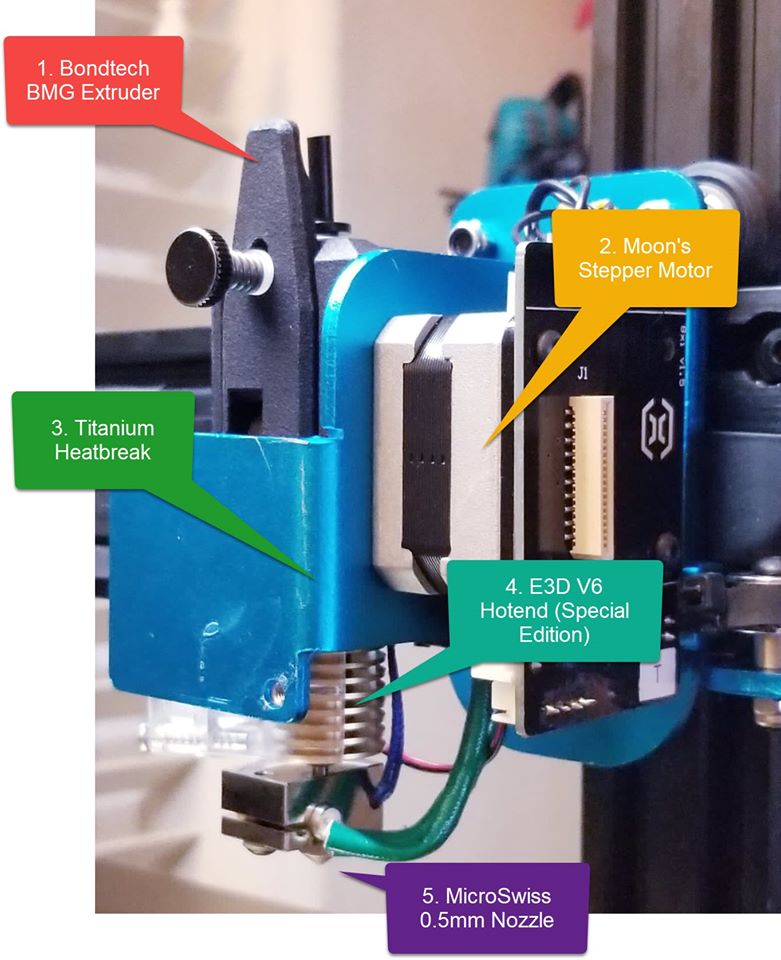

• Bondtech BMG Extruder (clone)
• E3D V6 Hot End Kit - V6 Heatsink, heatblock, heatbreak, heater cartridge, thermistor, and brass nozzle
• M3x35 Hex Bolts (3)


sO LET'S START OFF WITH SOME PROS TO DOING THIS UPGRADE VS THE HEMERA.

• The BMG extruder has been on the market since 2017. It has been tried and tested by many folks. It simply just works.
• It fits right onto the stock mounting brackets. There's no need to print anything extra to get the extruder to work. This also means that the 20-pin ribbon cable remains in the same position.
• This upgrade is modular, meaning if something fails, it's easy to swap out that piece. Whereas the Hemera is all in one, if the stepper motor fails for example, you can't just pick up a new Nema 17 motor, you have to buy E3D's proprietary motor.

  INSTALLATION

  Before starting this upgrade, I recommend printing out parts coolers for this upgrade. I designed one for the BMG / V6 and BMG / Volcano:

  •  BMG / V6:
  •  BMG / Volcano:https://www.myminifactory.com/object/3d-print-sidewinder-x1-bmg-e3d-volcano-parts-cooler-4020-radial-111062
  • Assemble the Bondtech BMG Extruder and V6 Hotend. There is an official video from Bondtech:   Watch here
    Note: The extruder will come with instructions as well, please read them carefully to install the correct gear on the stepper motor and in the right orientation.
  • Remove the stock extruder. Here is the official video from Artillery:   Watch here
  • Install the BMG / V6 or BMG / Volcano Combo in place of the stock extruder. This lines up with the stock holes. Line up the stepper motor with the BMG extruder. I made a video showing how this looks:  Watch here
  • You will need to connect the E3D thermistor and E3D heater cartridge to the stock plugs. You have two options for this: 1) you can cut the stock connector and solder it on, 2) you can crimp the connection and reuse the stock connectors. The polarity is not important for these two components. For reference, the connectors are JST-XH, the thermistor is 2.54mm, the heater cartridge is 3.96mm.
  • Adjust the VREF on the E0 Stepper Driver. I adjusted mine to 0.50v, and it's been working great, some people do 0.65v. If you don't do this, the stepper motor will get very hot, shortening its lifespan.

    THOUGHTS AND IMPRESSIONS

           I did this upgrade a little before the release of the Hemera. I was tired of dealing with under extrusion with the stock extruder. The Titan Aero's cooling design is somewhat lacking, so a clone would be worse off, in my opinion. That's what the stock extruder is, a Titan Aero Clone. Don't get me wrong, it's great for printing low-temp stuff like PLA but when it comes to anything above 220c, it starts to struggle.

           With this BMG / V6 extruder combo, my prints are reliably great. Like I said earlier, it just works. I like how clean this setup is, how it just fits, and how reliable it's been. If the Hemera came out 2 weeks earlier, I'd probably be blogging about that, but this is what I have.It costs a little more but hopefully this write up will help you make an informed decision.
    4020 V6 cooler
    https://www.thingiverse.com/thing:3956274


  • 4020 Volcano cooler (you lose 25mm off Z)

  • https://www.thingiverse.com/thing:3918721
